Everyone knows cool air & energy go to waste when a refrigerator door is open. If barefoot you feel cold air pouring from an open refrigerator door. But modern, consumer-friendly Coolview naturally reduces the time the door is open, reduces air exchange, and offers substantial energy saving. The door's other key design point is vacuum insulation - as often used for multipane windows. A vacuum is the best insulator, and thwarts condensation arising outside cooled surfaces.
Refrigerators are the top consumers of electricity in most homes. This energy-saving design has global implications, and can attract praise & fame throughout the world for a dynamic manufacturer such as ... LG Electronics® ? Coolview is iconic product technology.
This invention seriously challenges existing refrigerator models; Coolview promises to pioneer a new energy rating scale and a new energy efficiency paradigm.
Most energy ratings & energyguide labels, (and the refrigerator models they've been testing), are obsolete; energy use is estimated only from closed-door testing (extrapolating usage, open time and air leakage). Thanks to the wholly different Coolview, old energy usage scales need reformulation to better reflect actual usage patterns and lower energy demand (e.g. when checking what's inside, the door need not be opened).
In fact, many ratings formats mislead consumers, giving good 'grades' that seem optimal. Scales now rating 'A' (as in Europe) or 'Grade 1' (Hong Kong Energy Efficiency Labelling Scheme; more details here) are not as good as their grade would suggest. The ratings require reformulation: the standard energy levels are wastefully high, and these 'grade' give a terribly erroneous impression of being optimal. It's grade inflation! (Europe now goes up to A+++ for refrigerators: far too manufacturer-friendly for an unnecessarily wasteful product; Coolview may make it A++++). Gross annual kilowatt-hours (kWh) are estimated for USA labels, perhaps with an EnergyStar designation, but many other nations unreasonably grade products: the Singapore Environment Council's Energy Labelling initiative has appliances now graded 'Excellent' that should be graded more poorly when compared to this Coolview Energysaving Refrigerator.
You'll love the Coolview in your home. It's not in production yet - but savvy consumers - you - should already have one. Ultimately this refrigerator will be a proud part of most home kitchens. Tell your favorite manufacturer to study this site: http://reorient.com/coolview
Figures all enlarge when clicked
Details in Japanese Patent 2032200

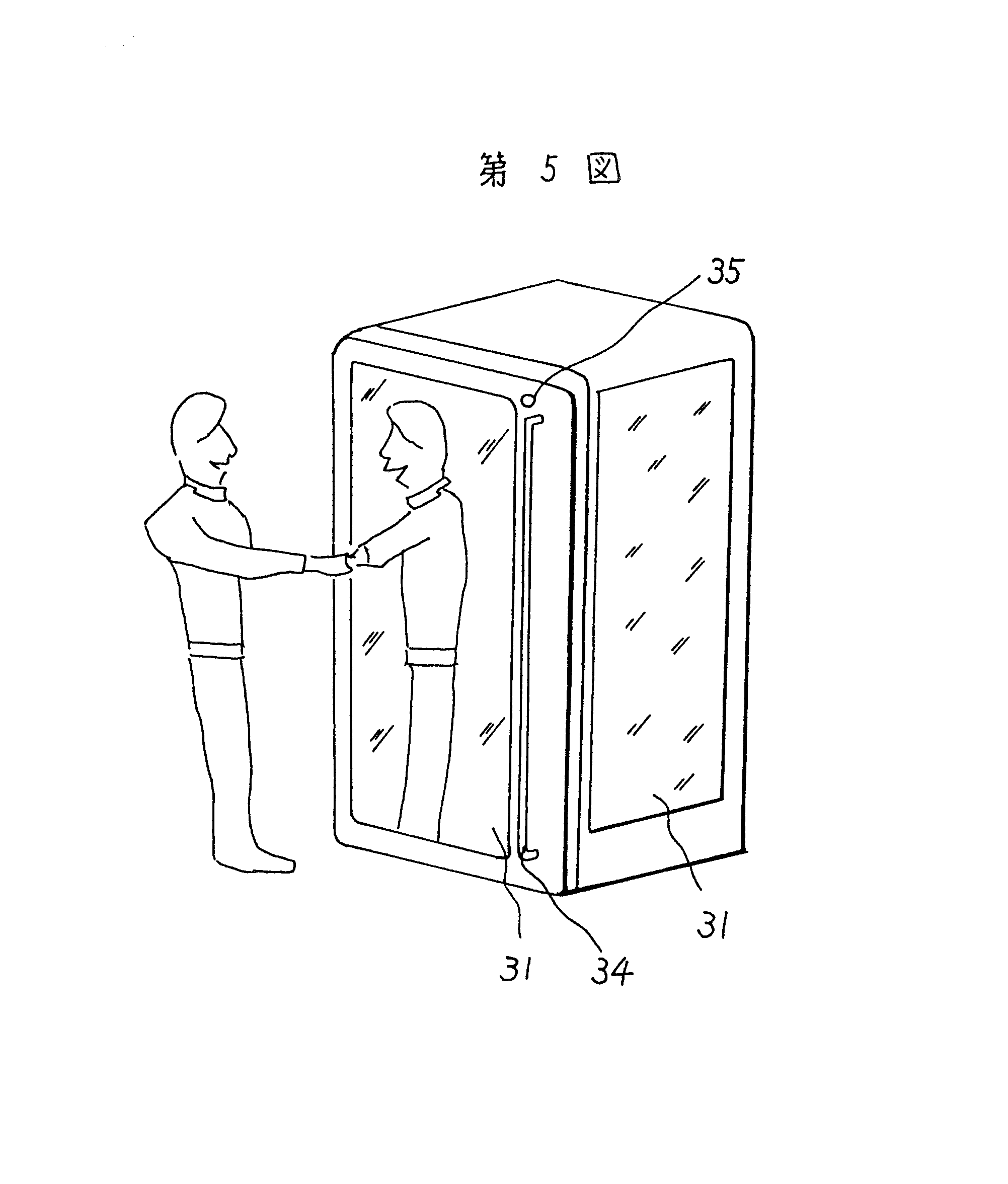

The front face of the refrigerator door appears as a mirrored surface.
In fact, the door is glazed so that it is "one-way" glass or a "half-mirror."

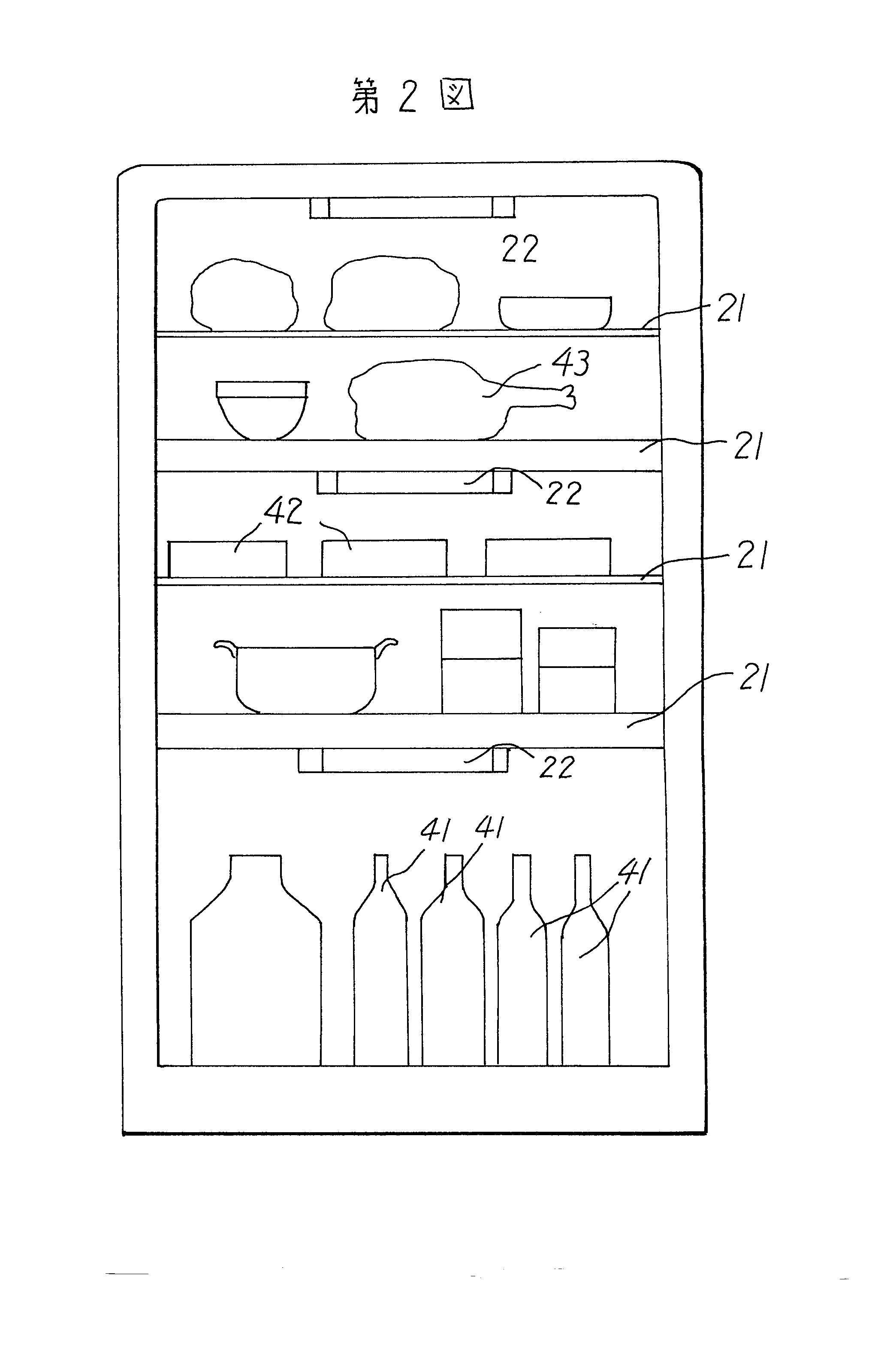

When the inside is lit up, you can see the refrigerator's contents.
This results in energy savings. Minimizing the time the door is open reduces costly air exchange.
Key sales points:
Saves energy: limits air exchange and loss of refrigerated air
Cost saving
Modern sleek style and appearance
Users enjoy an increased sense of kitchen space
Seeing one's reflection promotes dieting

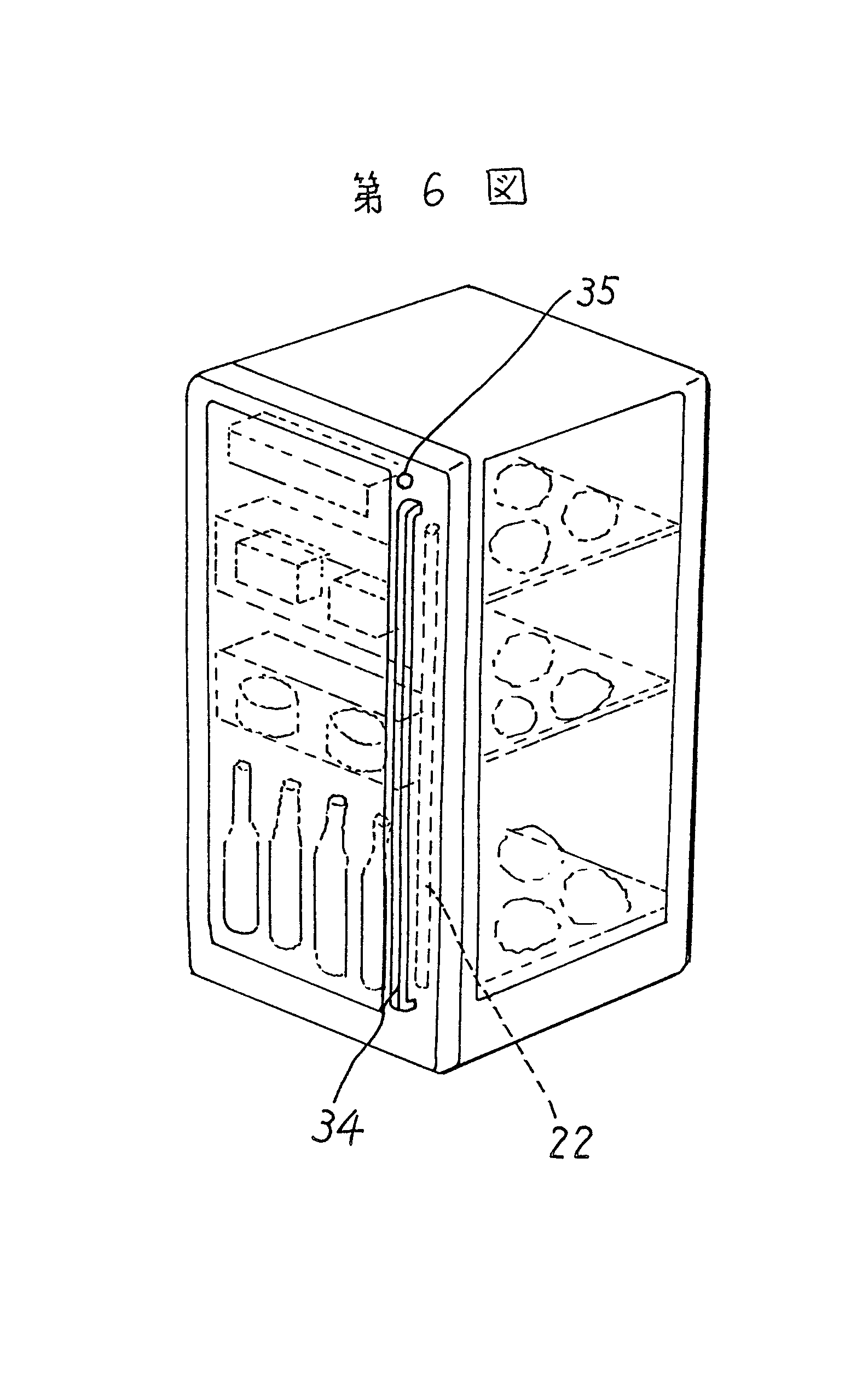

Touching the door handle activates a touch switch that illuminates the refrigerator interior (these lights are regulated by a photosensor above the door). You can now see within the refrigerator with the door closed, or while opening it. Quick determination of the existence / placement of required goods shortens the time the door is open. The system operates automatically when grabbing the handle; the transition from the energy-gobbling refrigerators used today is natural, without any learning curve.
Refrigerators are the top consumers of electricity in an average home.
These high energy costs are largely due to the number of times and the length of time the door is open.
The Coolview refrigerator is an energy-saving modern design with a huge potential market.
An additional benefit of the design is an increased perception of space in the kitchen. Present refrigerator designs consist of a wide enameled surface area, white or colored, but the half-mirror surface of the Coolview refrigerator offers an understated (somewhat smoked) mirrored surface to reflect light and increase the feeling of space in the kitchen.
It's not really a joke to say that consumers benefit when contemplating their full size reflection prior to refilling their bellies. Obesity is a widespread problem; dieters need encouragement. This refrigerator design truly will help people fight undesirable snacking.

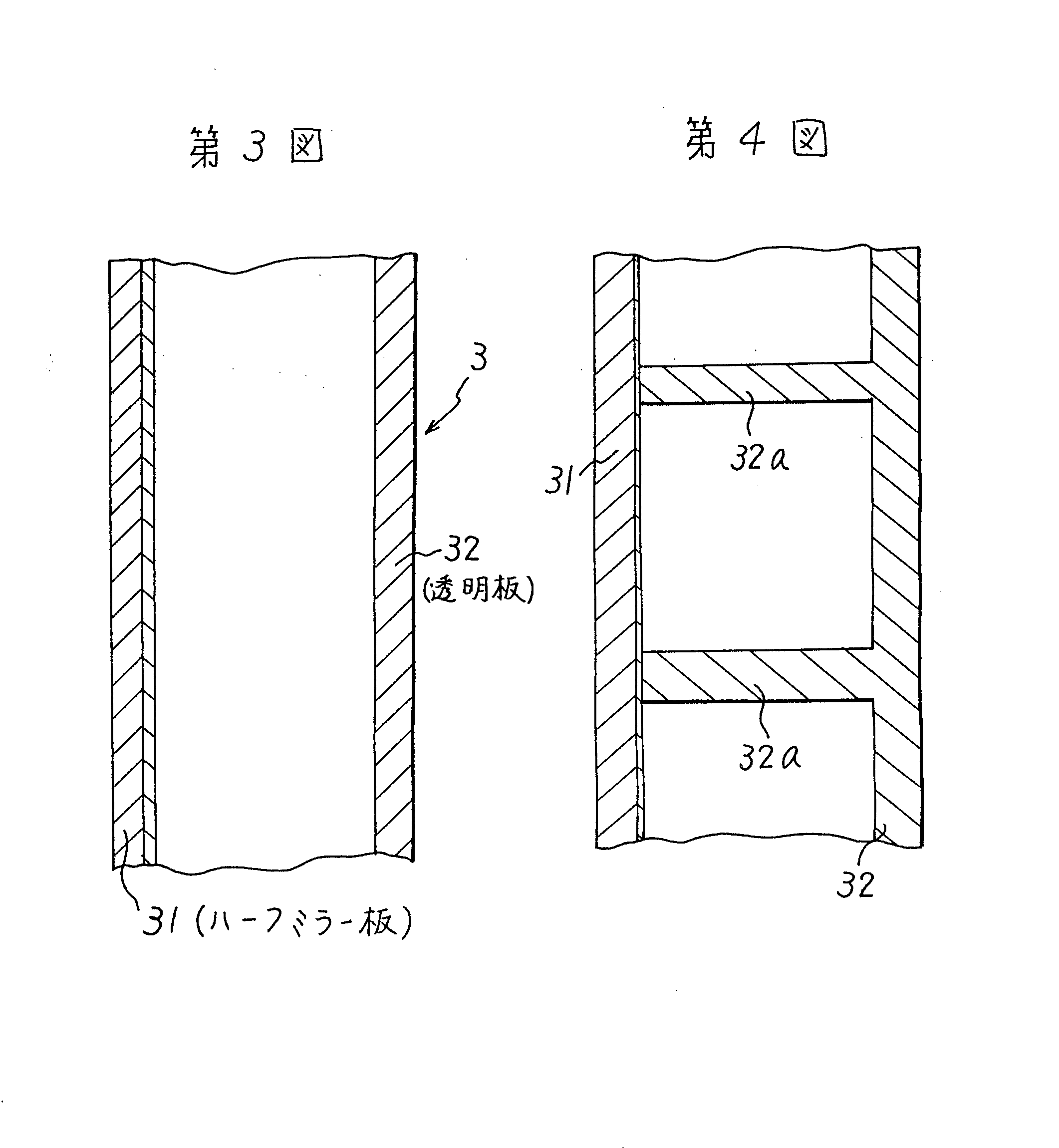

The design incorporates a few features that overcome potential structural limitations. To counter the lower insulating properties of a door of glass (or plexiglass, plastic, etc...), the door consists of two or more surfaces with a vacuum between them. The vacuum insulates and also thwarts condensation that might otherwise arise outside a cooled surface. Storage shelving inside the door should be transparent to not impeded the ability to see within the refrigerator (such racks can, if desired, be reduced or adjustable at certain heights); in practice, visibility can be made fully adequate.

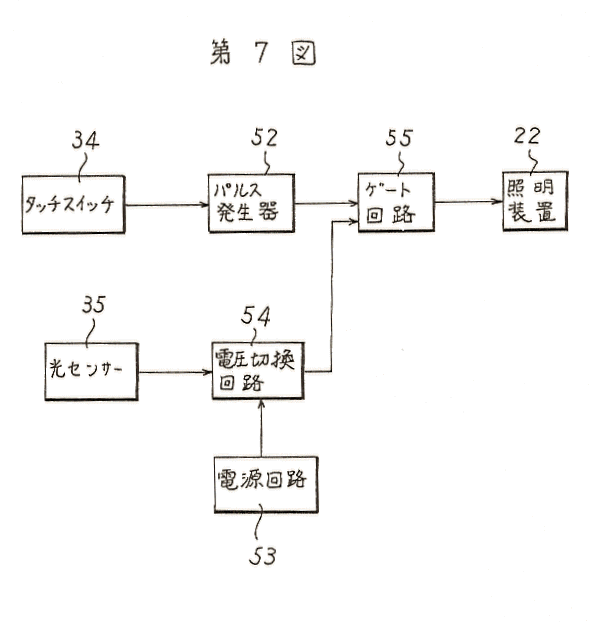

A photosensor regulates internal luminescence and maintains a difference in lux between inside and outside. With a half-mirror, if the inside is dark the door will appear as a mirror; when the inside is sufficiently bright, the refrigerated contents can be seen. A photosensor, like that of a camera with built-in flash, regulates a range of lighting over variations such when the refrigerator is in direct sunlight or in a darkened kitchen at night.
A simple touch turns on the touch switch (and in this case the photosensor and internal lights). The circuit can be defeated by both a timer (touching the door gives ten-seconds of illumination, for example), or by opening the door (a light-button is near the hinge, operating as a typical internal refrigerator light). The touch-switch handle also can be turned off if a consumer is shy about showing refrigerator contents to kitchen guests.
There now exist refrigerators with clear glass doors. But it is usually unwelcome to have the refrigerator's contents on continuous display. The Coolview Energysaving Refrigerator is a next-stage design that consumers will find popular for its ease of use, lower energy consumption and beauty.
Click here for full details in Japanese <--
A fine energy-saving invention. Opportunity available for licensing or partnership!
This great Coolview Energysaving Refrigerator has inspired news reports around the world (click to see articles):
Lycos, Excite, Yahoo, and many others.
The Coolview Energysaving Refrigerator can soon be part of your home - ask for it -- demand it --- raise hell till you get it!
Contact:
Dr. Bruce Henry Lambert
Upplandsgatan 53
113 28 Stockholm, Sweden
Tel (+46-8) 612-1294
bruce@reorient.com
Saves energy: limits loss of refrigerated air
